ALWAYSE Ball Transfer Unit with 19mm diameter Steel ball
- RS 제품 번호:
- 687-584
- 제조사 부품 번호:
- 300613
- 제조업체:
- ALWAYSE
1413 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당
₩7,496.415
| 수량 | 한팩당 |
| 1 - 5 | ₩7,496.415 |
| 6 - 24 | ₩7,246.305 |
| 25 + | ₩6,977.221 |
- RS 제품 번호:
- 687-584
- 제조사 부품 번호:
- 300613
- 제조업체:
- ALWAYSE
제정법과 컴플라이언스
해당 안됨
- COO (Country of Origin):
- GB
제품 세부 사항

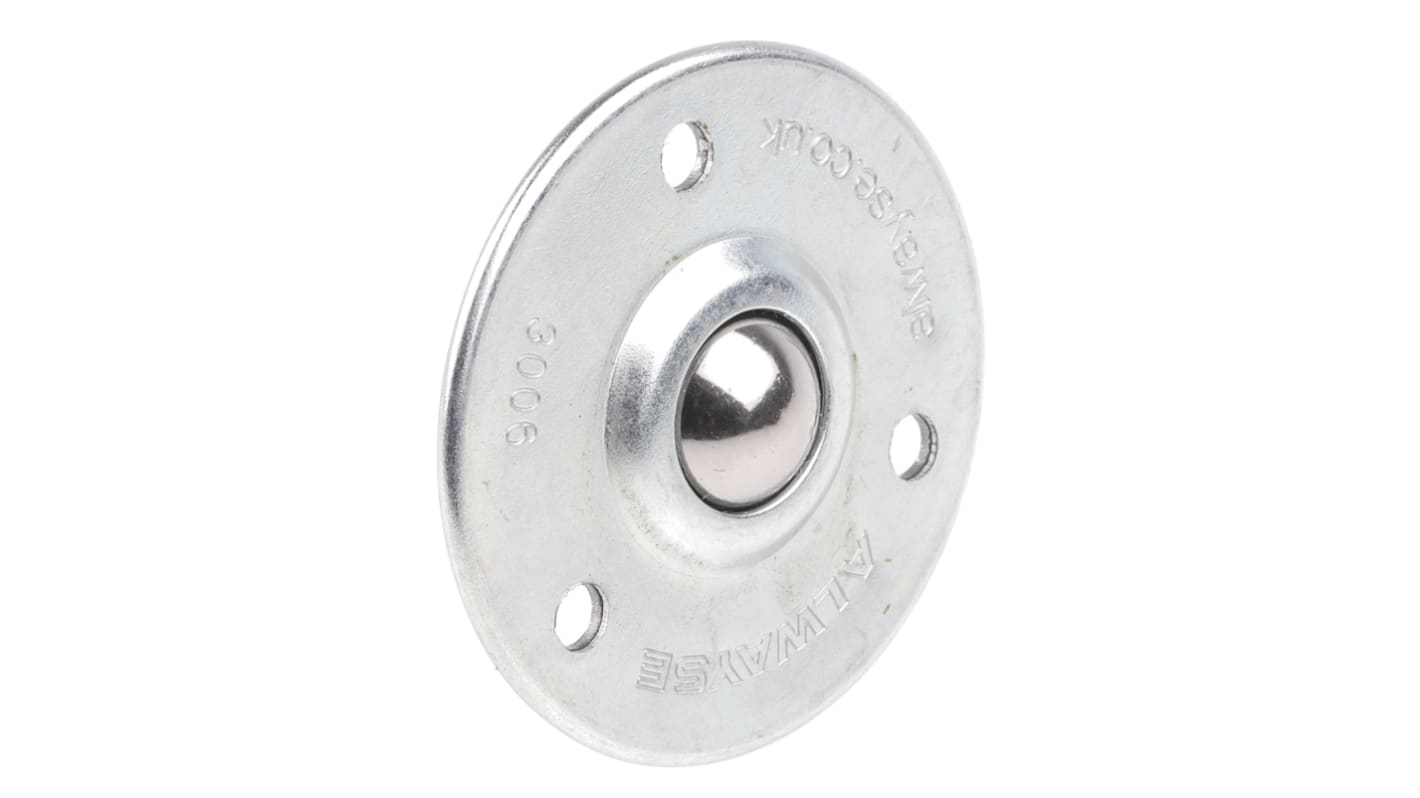

ALWAYSE Bolt Fixing Ball Transfer Unit
The ALWAYSE 3-hole flange mount bolt fixing ball transfer unit is a highly efficient device with a maximum load capacity is 25kg. This unit is used to move or transfer loads in all direction with a maximum speed of 1m/s. It is available in a wide choice of load capacities, sizes and fixings.
Features and Benefits
Ball diameter is 19mm
Flange diameter is 61mm
Case material is stainless steel
Low friction movement of loads
3%-5% of load force required to start motion
2% of load force required to maintain motion
Load ball material is stainless steel with zinc plated
Self-cleaning hole in base of bearing cup
Operating temperature ranging between -30°C and 70°C
Flange diameter is 61mm
Case material is stainless steel
Low friction movement of loads
3%-5% of load force required to start motion
2% of load force required to maintain motion
Load ball material is stainless steel with zinc plated
Self-cleaning hole in base of bearing cup
Operating temperature ranging between -30°C and 70°C
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
BS EN 61340-5-1:2007
사양
속성 | 값 |
|---|---|
| Ball Diameter | 19mm |
| Mounting Type | 3-Hole Flange |
| Maximum Load | 25kg |
| Load Ball Material | Steel |
| Case Material | Steel |
| Flange Diameter | 61mm |
