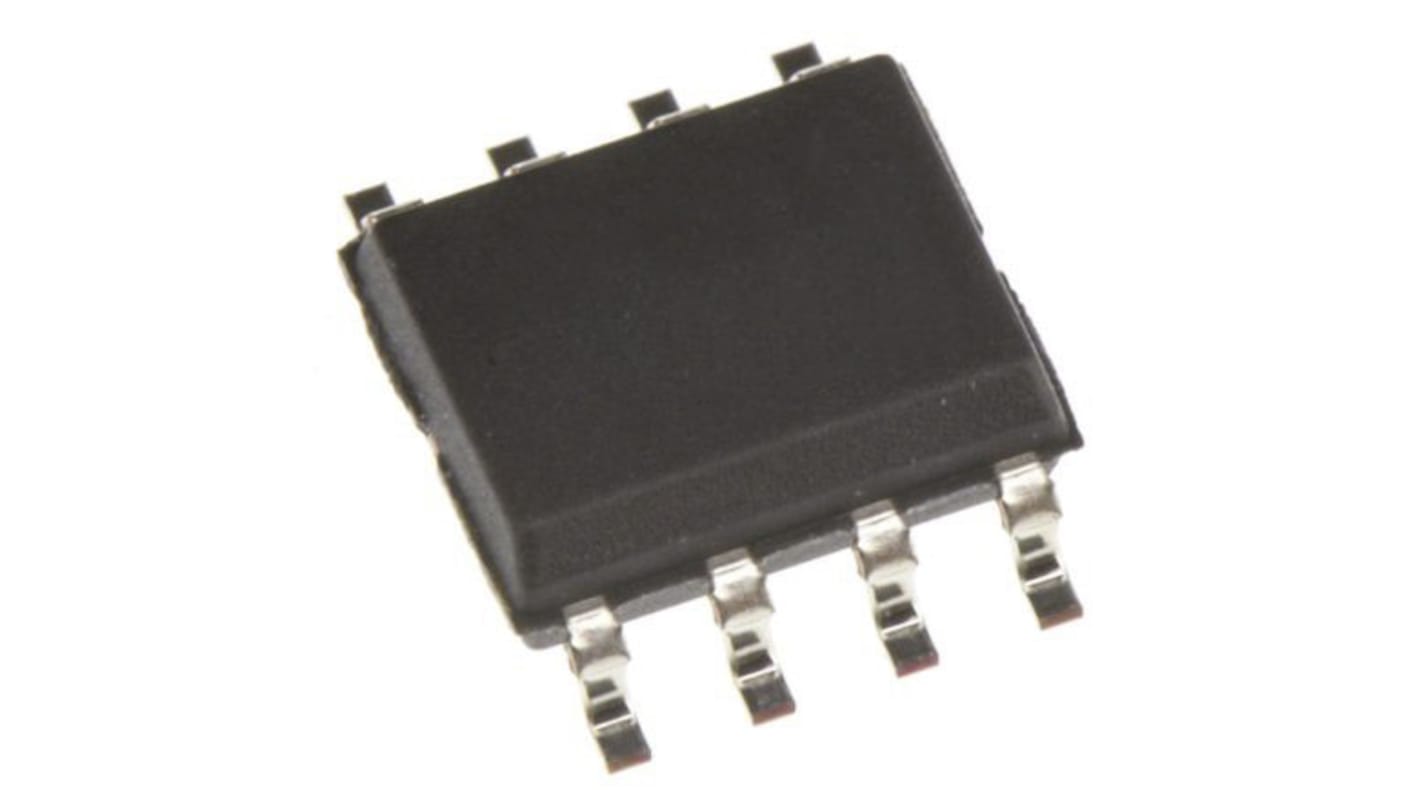

Maxim Integrated Butterworth, Low Pass Filter Active Filter, 8th Order
- RS 제품 번호:
- 190-6088
- 제조사 부품 번호:
- MAX7480ESA+
- 제조업체:
- Maxim Integrated
단종
- RS 제품 번호:
- 190-6088
- 제조사 부품 번호:
- MAX7480ESA+
- 제조업체:
- Maxim Integrated
제정법과 컴플라이언스
제품 세부 사항
8th-Order, Lowpass Butterworth Filter
Low Noise and Distortion: -73dB THD + Noise
Clock-Tunable Corner Frequency (1Hz to 2kHz)
100:1 Clock-to-Corner Ratio
+5V Single-Supply Operation
Low Power
2.9mA (Operating Mode)
0.2μA (Shutdown Mode)
Available in 8-Pin SO/DIP Package
Low Output Offset: ±5mV
Applications
ADC Anti-Aliasing
Post-DAC Filtering
Low Noise and Distortion: -73dB THD + Noise
Clock-Tunable Corner Frequency (1Hz to 2kHz)
100:1 Clock-to-Corner Ratio
+5V Single-Supply Operation
Low Power
2.9mA (Operating Mode)
0.2μA (Shutdown Mode)
Available in 8-Pin SO/DIP Package
Low Output Offset: ±5mV
Applications
ADC Anti-Aliasing
Post-DAC Filtering
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
|---|---|
| Filter Type | Butterworth, Low Pass Filter |
| Maximum Order | 8th |
| Architecture | Switched Capacitor |
| Cut-off Frequency | 1 → 2kHz |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 4.5 → 5.5 V |
| Number of Circuits | 1 |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 8 |
| Dimensions | 5 x 4 x 1.5mm |
| Height | 1.5mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Width | 4mm |
| Length | 5mm |
| Operating Temperature Range | -40 → +85 °C |
