RF Terminators

RF terminators are devices used to electrically terminate coaxial RF (radio frequency) ports. They are usually placed at the end of the transmission line to prevent an RF signal from being reflected.

RF terminators are designed to match the surge impedance (ratio of current and voltage) of the cable to help minimise signal reflections and power losses. Unused tap ports or coaxial faceplates in a home, for example, can create entry and exit paths, which affect performance.

How do RF terminators work?

RF terminators absorb the electrical energy of the signal as it reaches the cable ends and prevents the signal from being reflected so it doesn’t become noise. They ensure that current flows smoothly from one device to another.

What are RF terminators used for?

RF terminators play a critical role in high-frequency systems and circuits, especially when managing high-power signals. They can also be used to close open terminations that might otherwise allow parasitic signals to enter the circuit, such as at a T-junction.

RF terminators are available in many form factors with power ratings to match their sizes.


...
Read more Read less

검색 필터링

총 88개 제품 중 1번째-20번째 제품을 조회 중
한장내 검색 결과 수
제품설명 단가 Interface Type Gender Body Orientation Mounting Type Impedance Body Plating Cable Type Operating Frequency Average Power Rating Low Power Contact Material Contact Plating Termination Method Coaxial Connector Type
RS 제품 번호 546-4695
제조사RS PRO
₩19,305.25
Each
수량
BNC Female, Male Straight Through Hole 50Ω Silver - 0 → 0.5GHz 2W - Brass Gold - -
RS 제품 번호 143-9691
제조사 부품 번호132360
제조사Amphenol
₩2,546.65
Each (In a Bag of 500)
수량

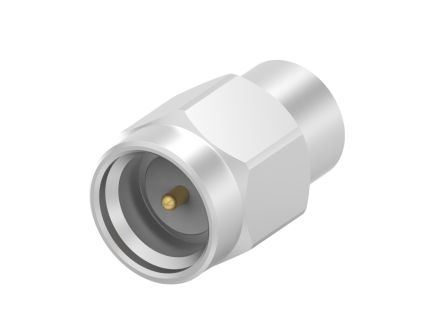

SMA Male Straight - 50Ω Gold - 0 → 18GHz 2W - Brass Gold - -
RS 제품 번호 144-0920
제조사 부품 번호132360
제조사Amphenol
₩4,056.35
Each
수량
SMA Male Straight - 50Ω Gold - 0 → 18GHz 2W - Brass Gold - -
RS 제품 번호 394-1083
제조사 부품 번호1-1337470-0
제조사TE Connectivity
₩23,121.35
Each
수량
BNC Male Straight Cable Mount 75Ω Gold - 0 → 1GHz - - Brass Gold - -
RS 제품 번호 164-9077
제조사 부품 번호1-1337470-0
제조사TE Connectivity
₩18,711.60
Each (In a Box of 50)
수량
BNC Male Straight Cable Mount 75Ω Gold - 0 → 1GHz - - Brass Gold - -
RS 제품 번호 296-7955
제조사 부품 번호R404111000
제조사Radiall
₩15,428.70
Each
수량
BNC Male Straight - 50Ω Nickel - 4GHz 1W - Brass Gold over Nickel - -
RS 제품 번호 716-5019
제조사 부품 번호65_N-50-0-51/113_NE
제조사Huber & Suhner
₩23,725.85
Each
수량
N Male Straight - 50Ω White Bronze - 0 → 6GHz 1W - Brass White Bronze - -
RS 제품 번호 716-4996
제조사 부품 번호65_N-75-0-11/133_NE
제조사Huber & Suhner
₩273,782.70
Each
수량
N Male Straight - 75Ω White Bronze - 0 → 1.3GHz 1W - Brass Gold over Nickel - -
RS 제품 번호 785-7761
제조사 부품 번호R404012000
제조사Radiall
₩13,903.50
Each
수량
BNC Male Straight Through Hole 75Ω - - 1GHz 1W - Brass Gold - -
RS 제품 번호 546-4673
제조사RS PRO
₩6,426.30
Each
수량
BNC Male Straight - 50Ω Silver - 0 → 1GHz 0.5W - Brass Gold - -
RS 제품 번호 112-3148
제조사 부품 번호J01006A1268
제조사Telegartner
₩8,087.90
Each
수량
BNC Male Straight - 50Ω - - - 0.5W - - - - -
RS 제품 번호 112-3665
제조사 부품 번호80.5420.017
제조사IMS
₩9,834.75
Each
수량
- - Right Angle PCB Mount - - - - - - - - - -
RS 제품 번호 112-3671
제조사 부품 번호80.5420.027
제조사IMS
₩9,842.50
Each
수량
- - Right Angle PCB Mount - - - - - - - - - -
RS 제품 번호 773-7490
제조사 부품 번호APH-HDBNCJ-T
제조사Amphenol
₩38,708.15
Each
수량
BNC Female Straight - 75Ω - - 3GHz 1W - Beryllium Copper Gold - -
RS 제품 번호 164-9309
제조사 부품 번호221629-4
제조사TE Connectivity
₩15,661.20
Each (In a Box of 100)
수량
BNC Male Straight Cable Mount 50Ω - - - 1W - Brass Gold - -
RS 제품 번호 546-4128
제조사RS PRO
₩4,623.65
Each
수량
BNC Male Straight - 50Ω - - 1GHz 0.5W - Brass Gold - -
RS 제품 번호 161-6049
제조사 부품 번호1-1337463-0
제조사TE Connectivity
₩5,996.95
Each (In a Bag of 50)
수량
BNC Male Straight - 50Ω - - 0 → 1GHz 0.5W - - - - -
RS 제품 번호 716-5056
제조사 부품 번호65_QLA-01-0-1/122_NE
제조사Huber & Suhner
₩60,279.50
Each
수량
QLA Male Straight - - Nickel - 0 → 1.4GHz 0.5W - Brass Gold over Nickel - -
RS 제품 번호 263-2766
제조사 부품 번호R404240000
제조사Radiall
₩77,430.25
Each
수량
N Male Straight - 50Ω - - 0 → 12.4GHz 1W - - - - -
RS 제품 번호 131-246
제조사 부품 번호996074
제조사Domocare
₩6,603.00
Each
수량
BNC Male Straight - 50Ω - - - 1W - Brass Gold - -
